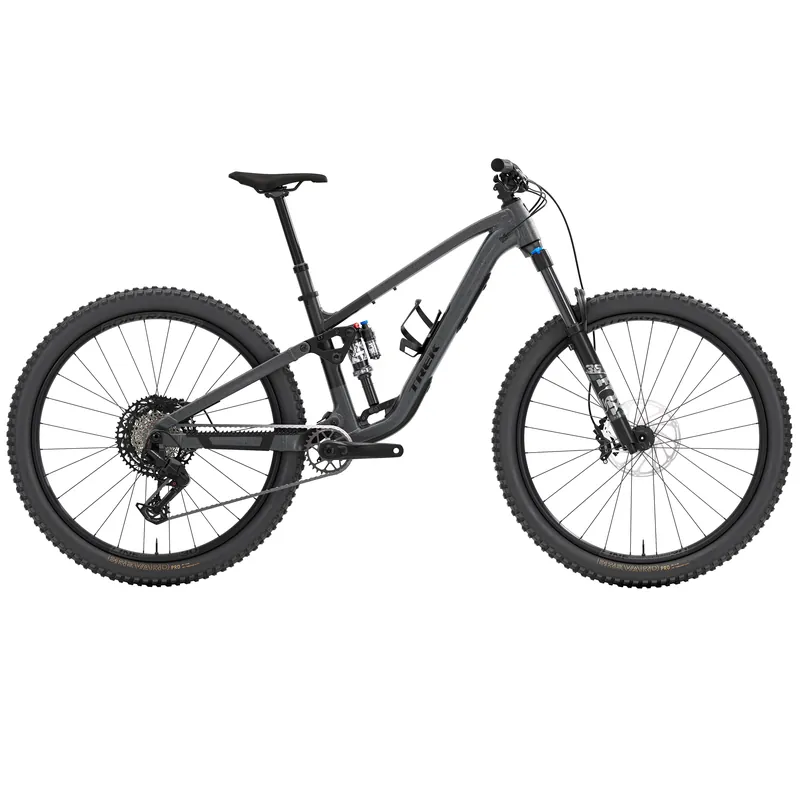

Fuel EX 8 Gen 7 Bike – 2026

Tech Specs

• Brakes

  • Brake Rotor

    SRAM Centerline 2.0, 6-bolt, 180mm

  • Brake Rotor

    SRAM Centerline 2.0, 6-bolt, 200mm

  • Brake

    SRAM DB 8 4-piston hydraulic disc

• Cockpit

  • Stem

    Bontrager Elite, 35mm, 0 degree, 45mm length

  • Handlebar

    Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width

  • Grips

    Trek Line Comp, nylon lock-on

  • Saddle

    Bontrager Verse P3, chromoly rails

  • Seatpost

    (Size S) Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length

  • Seatpost

    (Size M) Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length

  • Seatpost

    (Size L, XL) Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length

  • Headset

    FSA Orbit, sealed cartridge bearing, 1-1/8” top, 1.5” bottom, 1.5 crown

• Drivetrain

  • Rear Derailleur

    SRAM Eagle 70, T-Type

  • Cassette

    SRAM Eagle XS-1270, T-Type,10-52, 12 speed

  • Chain

    SRAM Eagle 70, T-Type, 12 speed

  • Shifter

    SRAM Eagle 70, 12 speed

  • Crank

    SRAM Eagle 70, DUB, 30T steel, T-Type, 55mm chainline, 170mm length

  • Bottom Bracket

    SRAM DUB MTB Wide, 73mm, BSA threaded

• Frameset

  • Frame

    Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm

• Suspension

  • Fork

    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel

  • Shock

    Fox Performance Float X, 2-position damper, 205mm x 60mm

• Weight

  • Weight

    37.24 lbs

• Wheels & Tires

  • Hub Front

    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

  • Hub Rear

    Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle

  • Skewer Rear

    Bontrager Switch thru axle, removable lever

  • Tire

    Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.50”

  • Rim

    Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
